  • Free samples and catalog can be provided
  • Offer plenty of stock for standard size and matched accessories
  • Customized your own design with our latest Tooling Technology
  • Aluminum profile system match your T Slot Aluminum Extrusion

Perhaps you don’t have a specific project in mind - you’re simply interested in learning how T-Slot aluminum extrusion can make your life easier. We welcome the opportunity to conduct an “Introduction to T-Slots” session at your facility. Schedule a date or call us at (770) 879-3500.

  • Description
  • Data Sheet
  • Send Enquiry
  1. AA 6063-T6 is an aluminium alloy, with magnesium and silicon as the alloying elements. The standard controlling its composition is maintained by The Aluminum Association. It has generally good mechanical properties and is heat treatable and weldable. It is NOT recommended to weld anodized aluminum. Tensile strength (σ t): 30,000 psi.
  2. 40 Series T-Slot; Aluminium Extrusion Profiles; AL-4080-90 Read more. Add to Wishlist Add to Compare. 40 Series T-Slot; Aluminium Extrusion Profiles; AL-8080 Read.

T slot aluminum extrusion also named as extruded aluminum t slot, it is wildly used due to its flexibility assembling and easy machining, high hardness, good corrosion resistance, and non-magnetic characteristics.

Wellste Aluminum manufacture and supply t slot aluminum extrusion more than 12 years. We offer high quality and widest range for your Modular aluminum framing or Aluminum profile system. Wellste T slot aluminum extrusion is durable, lightweight and easy to install.

The most common aluminum alloy number for producing t slot is 6063. They come in a clear anodized or sandblasting or stain anodized decorative finish, which makes the t slot aluminum extrusion more resistant to corrosion. And you can choose the color you prefer for your t slot aluminum extrusion.

T slot aluminum extrusion is a good choice because they are relatively lightweight but with strong strength, they are easy to cut to specific length and outstanding machining, they don’t rust.

They come with many accessories, such as Aluminum bracket, screw, and connector, all you need is just a simple hand tool to install. If you want to modify or add a design, it is also very easy to disassemble. T slot aluminum extrusion has good flexibility on this point.

Item NameT slot aluminum extrusion
Material6063-T5
FinishMill Finished or Anodized
Quality StandardGB/T 5237-2008
Production Time5-10 days
Sample ChargeSample is for free, the express is on your side
PaymentTT, L/C, etc
MOQ100KG
T slot AccessoriesJoint Bolt, Core Screw, Corner Bracket, Cover Strip, Wheel
End Cap, Acticula Foot, T-Bolt, Flange Nut, Hinge, End Connector
PackagingPE Protective film for each pc, craft paper for each bundle
Customized Packaging requirement

Wellste: Your Top T Slot Aluminum Extrusion Manufacturer

Wellste T slot aluminum extrusion can be assembled to machine guards, clean room, safety enclosure, workstation, office furniture. Wellste T slot aluminum extrusions are also used in linear motion, conveyors, machine frame and displays Rack etc. Wellste T slot aluminum extrusion can cover a variety of industries that you can imagine.

Wellstet slot aluminum extrusion has plenty of stock for standard popular size, as like 15×30, 30×30, 30×60, 40×40, 45×45, 50×50, 60×60, 40×120 and more, you can consult our sales engineer and we will send t slot aluminum extrusion catalog for your select.

If you need, we can provide a free sample. We can cut to length according to your requirements and ship out within 5 working days. If wellste standard t slot aluminum extrusion cannot meet your demand, our engineer will assist you design and give sound advice to help your customized t slot aluminium extrusion.

Wellste has many t slotted framing accessories for aluminum profile framing system. There are aluminium profile connectors, aluminum extrusion fasteners, aluminum t bracket, bolts & screws, and end caps etc.Wellste integrate aluminum profile accessories and short your purchasing time to boost your local market. We can offer a full catalogue upon your requirements.

Welcome contact us today and you will get 8 Hour fast quote from our sales engineers.

What is a T-Slot Aluminum Extrusion?

T –Slot aluminum extrusion is a T-shape device that you can use for different structural and framing applications.

Its uniqueness is in the fact that you do not need special tooling and welding to assemble the different parts.

T-Slot aluminum extrusions do not need any form of finishing, therefore, having a wonderful aesthetic finish in the natural state.

Figure 1 T slot aluminum extrusion

Where Can you use T-slot Aluminum Extrusion?

You can use T-Slot aluminum extrusions in assembly and construction of different industrial applications such as:

Figure 2 Applications of T slot aluminum extrusion

  • Work bases
  • Machine enclosures and bases
  • Medical applications in the manufacturing of medical machines
  • Carts for handling different materials
  • Platforms and stairs for different events
  • Attachment of wire meshes, screens, and panels.
  • Packaging and automation in saw guides and safety guards, and lean manufacturing.
  • Making a series of different products such as furniture, conveyors and trade show booths among others.
  • Architectural designs such as window and door frames, sign frames and roofs.

Does 80/20 Mean the Same Thing as T-slot Aluminum Extrusions?

You can also refer to the T-Slot aluminum framing as 80/20 framing.

The name originates from the company 80/20 Inc. which was a prominent T-Slot framing brand using the 80/20 principle.

Also, the 80/20 also refers to T slot aluminum extrusion size. Therefore, it implies that this is a T slot aluminum extrusion with the profile sectional size is 80mm *20mm.

Why is 6063-T5 Popular for T-slot Aluminum Extrusions?

Aust

6063-T5 is more popular for T-Slot aluminum extrusion because it has the best all round extrusion properties.

It consists of an aluminum alloy with silicon and magnesium as the main alloying elements thus increasing the strength.

Generally, 6063-T5 has great mechanical properties that you can use for comparative intricate sections.

Apart from the above, other properties that make it more popular for T-Slot aluminum extrusion include:

  • Has a wonderful surface finish
  • You can easily anodize 6063-T5
  • Resistant to corrosion and with a very high strength in comparison to 3003.
  • Allows for precipitation heat treatments, and welding to strengths just below 6061.
  • Typically has smooth surfaces and tight corners thus making it easy to anodize.
  • Offers a special balance between quality at a very good price.

What are the Advantages of T-slot Aluminum Extrusions?

You will experience the following advantages when you are using the T –Slot aluminum extrusion:

Figure 3 T slot aluminum extrusion profile

  • T-Slot aluminum extrusions are flexible and you can use them to build anything.
  • It requires no welding thus you do not need a welder or welding machines.
  • T-Slot aluminum extrusions are strong and durable.
  • The assembly process of T-Slot aluminum extrusions is straight forward and reasonable.
  • It is light in weight and also resistant to corrosion.
  • T-Slot aluminum extrusions are also easy to build.
  • You can easily disassemble and re-configure a T-Slot aluminum extrusion frame.
  • It is flexible and allows you to configure and adjust to the changing advancements in technology.
  • It is a cheaper option that you will enjoy using for a very long period.
  • It is a safe product for use through recommendations from ergonomic safety officers.
  • It has a very smooth finish with a great aesthetic value with no need to paint.

In short, T-Slot aluminum extrusions allows you to work faster, make changes in the due cause, at a cheap price.

Are there Standards Sizes for Extruded T-slot Aluminum Profiles?

Yes, there are standard sizes for extruded T –Slot aluminum profiles.

Whenever you order extrudes T-Slot aluminum, you will receive them in standard sizes.

The most common standard sizes for T-Slot aluminum profiles include:

  • 20 mm with 5 mm T-Slot
  • 20 mm with 6 mm T-Slot
  • 30 mm with 8 mm T-Slot
  • 40 mm with an 8mm T-Slot
  • 40 mm with a 10 mm T-Slot
  • 45 mm with 10 mm T-Slot
  • 60 mm with 10 mm T-Slot
  • 90 mm with 10 mm T-Slot

Figure 4 Different sizes of t-slot aluminum extrusion

Apart from the standard sizes, you can also request for custom sizes of extruded T-Slot aluminum profiles.

How do T-slot Aluminum Extrusions and V-slot Aluminum Extrusion Compare?

Figure 5 V slot aluminum extrusion

T-Slot aluminum extrusion has T-shape groove on every side while the V-Slot has slight beveled edge.

The shape of the aluminum extrusions has a lot to do with the types of aluminum extrusion profile.

For instance, V-slot allows for wheels and bearings to sit within the profile thus doubling up as a linear rail.

This reduces the cost of installing motion parts on the V-Slot structures.

You can also interchange between the T-Slot and V-Slot aluminum extrusion profiles but it is better to stick to one.

Basic parts of the aluminum extrusion profiles such as T – nuts and brackets work perfectly for both aluminum extrusion profiles.

Special types, on the other hand, may only work specifically for either of the two aluminum extrusion profiles.

The T-Slot and the V-Slot aluminum extrusion profiles are available in different dimensions according to your specifications.

At Wellste, the cost of both V-slot and T-slot aluminum extrusion depends on weight per meter.

What is a T-slot Structural Framing?

T-Slot structural framing is a system of framing that consists of rectangular or square extruded aluminum.

Aluminium T Slot Extrusions Sydney To The Max

From the center line of the T-Slot structural framing, you will see a T-Slot and the 6105-T5 aluminum alloy.

Why is GB/T 5237-2008 Important in T-slot Aluminum Extrusion Process?

GB/T 5237-2008 is important especially in China because it is the main Chinese aluminum extrusion standard.

It is the main standard for architecture and building construction in China.

Manufacturers in China use GB/T 5237-2008 to measure the tolerance and dimension standards of the T-Slot aluminum extrusion.

It has similar standards that are equal with EN 755 in terms of measuring the right dimensions and tolerance levels.

How Do You Get Started with Aluminum Extrusion Profile?

The first thing that you have to consider is choosing the right aluminum alloy.

You will look at the different mechanical properties that will suit the right alloy number and temper.

For instance, if you are looking to have a decorative T-Slot aluminum extrusion with a higher level of appearance surface.

You should choose the 6063 alloy.

On the other hand, if you desire high mechanical properties for structural usage, you should consider the 6061 alloy.

Apart from that, you should consider the dimension tolerance and the wall thickness of the T-Slot aluminum extrusion.

It is easier to produce T-Slot aluminum extrusions with standard thickness but you can also opt for customization.

Figure 6 Uses of T slot aluminum profile

This will allow you to determine the speed and force that you will employ in the extrusion process.

When it comes to quality inspection, T-slot aluminum extrusion must comply with China aluminum extrusion industry standards.

Aluminium T Slot Extrusions Sydney

However, depending on your unique dimension requirements, Wellste can extrude T-slot aluminum according to customers’ assembly and accessories requirements.

Surface finish is also a very important factors that you need to consider when you are starting the extrusion process.

What is the Popular Extruded T-slot Aluminum Surface Finishing Techniques?

You have the freedom of choosing the type of surface finish technique that you need for the T-Slot aluminum extrusion.

You can either choose between electrophoresis surface finish techniques or anodized surface finish technique.

Anodized surface finish is the most common type of surface finish technique for extruded T-Slot aluminum.

Are there Recommended T-slot Aluminum Extrusions Accessories?

Yes, there are a number of recommended T-Slot aluminum accessories.

Figure 7 T slot aluminum extrusion accessories

Some of the accessories include:

  • Aluminum brackets
  • Fasteners: nuts and screw
  • Frame connectors
  • Counter balance Springs
  • Cup Holders
  • End Caps
  • Profile Sliders
  • T-Slot Covers
  • Roller Mounting Blocks
  • Roller Wheels
  • Sensor Mounting Blocks
  • Thread Profiles
  • Tool hanger
  • Carriage Bearing
  • Machining Jigs
  • Locking handles

How do you Extrude T-slot Aluminum Profiles?

You can extrude T-Slot aluminum profiles by going through the following simple steps.

Figure 8 Metal extrusion process

Aluminium T Slot Extrusions Sydney Opera House

Step One: Preparation Stage

In the preparation stage, you will choose on the type of shape that you need.

Apart from that, you will select the aluminum alloy you need as it determines the final T-Slot aluminum extrusion.

The tools that you need to have include extrusion dies and the associated tooling.

Step Two: Heating the Aluminum Alloy

You will heat the aluminum at specific control temperatures to achieve all the aluminum properties.

The properties include yield and tensile strength as well as the final finish of the aluminum alloy.

You will heat the billets to temperatures between 400 to 480 degrees centigrade until it is malleable.

Step Three: Shaping the Aluminum

You will transfer the hot aluminum to a press container.

Apply enough pressure to the billet using a hydraulic ram forcing aluminum to fill the container.

The pressure within the container forces aluminum alloys through the extrusion die.

It produces a long aluminum alloy with the shape of the extrusion die.

Step Four: Cooling the Aluminum

As the aluminum emerges from the extrusion die, it will be at temperatures between 510 to 550 degrees centigrade.

Aluminium T Slot Extrusions Sydney London

With the aid of the puller, you will pull the aluminum from the extrusion.

At the same time, the hot aluminum passes through fans, water sprays and full water quenches.

Step Five: Stretching Cool Aluminum

After that, you will stretch the aluminum alloy to make it straight.

Using a gripper on both ends of the extrusion, you will stretch the aluminum extrusion until it is straight.

After stretching, you will cut the aluminum to lengths of between 6 to 30 feet depending on your requirements.

Step Six: Final Hot Step or Aging T-Slot Aluminum Extrusions

This is the process of aging the aluminum alloy artificially.

You will cook the cut pieces of aluminum extrusions on ovens for about 3 hours to achieve the right hardness.

Set the cooking heat to about 350 degrees Fahrenheit.

After that, you can package the aluminum extrusions for shipping purposes.

Are there Recommended Fastening Options for T-slot Aluminum Extrusions?

Yes, there are specific types of fasteners that you will use for T-Slot Aluminum extrusions.

Some of them include:

  1. Nuts such as T nuts, economy nuts, roll-in nuts, square nuts, standard T-nuts, T-Slot nuts and drop-in T-nuts.
  2. Bolts such as T-bolts

Can You Buy T-slot Aluminum Extrusions Directly from Wellste?

Yes, you can buy T-Slot aluminum extrusions straight from Wellste.

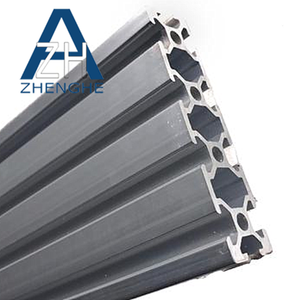

Extrusions

Wellste offers a wide variety of standard T-Slot aluminum extrusions that are compatible with all other major suppliers.

Apart from that, Wellste has a number of engineers that can help you come up with a personal design.

T-Slot aluminum extrusions are available in different shapes and sizes and Wellste will be able to meet your demand.

Does Wellste offer T-slot Aluminum Extrusions Design Options?

Yes, Wellste offers T-Slot aluminum extrusion design options that will fit your description.

Wellste has a team of engineers with a wide range of experience that can help you with your design.

The engineers will ensure that your design can works well and is producible.

What is Wellste Lead-time for T-slot Aluminum Extrusions?

Since Wellste produces different products, the lead time will vary according to the product you need.

For instance, in case you need a T-Slot aluminum extrusion that is on frequent production and hence on stock.

Wellste will take around 3 to 5 days to make sure that the T-Slot Aluminum extrusion is available for you.

In case you need a custom T-Slot Aluminum extrusion, Wellste will be able to provide it within 15-20 days.

Wellste T-slot Aluminum Extrusions are Available in What Lengths?

Wellste T-Slot aluminum are available in different lengths.

The standard length of T-Slot aluminum extrusion that Wellste produces is 6.01m long bar stock.

Wellste can also cut the T-Slot Aluminum extrusion according to the lengths that you require.

Does Wellste Sell Fully Assembled Aluminum Structures?

Yes, it is true that Wellste can sell a fully assembled aluminum structure.

All you need to do is come up with a functional design and the dimensions so that Wellste can assemble.

Extrusions

Wellste has a team of engineers that will assist in the design process and ensure that your design is workable.

After that they will embark on producing T-Slot aluminum extrusions and assembling the structure that you need in record time.

Can Wellste Help in CAD Design for T-slot Aluminum Extrusions?

Yes, Wellste can assist in CAD design for T-Slot aluminum extrusions.

Wellste has employed the services of design engineers with a wealth of experience to assist in CAD designs.

The team will not only assist in CAD design, but also assist in the assessment and recommend suitable designs.

Does Wellste has MOQ for T-slot Aluminum Extrusions?

Yes, Wellste has a minimum order quantity (MOQ) of around 100 KG for the T-Slot aluminum extrusions on stock.

Wellste Extrudes How Many Series of T-slot Profiles?

Wellste produces a number of different series of T-Slot profiles.

The four main series of T-Slot profiles include:

How do Wellste Package T-slot Aluminum Profiles?

Wellste wrap T-slot aluminum extrusion using EPE foams or seal in loose poly sleeves that will protect the surface finishing.

We wrap both small pieces and long bar profiles and our wrapper is a craft paper with a protective film.

Finally, Wellste will load the small and short components in wooden cases and wooden crates.

Can Wellste Support T-slot Aluminum Extrusions OEM projects?

Yes, Wellste has the capability of supporting the original equipment manufacturer projects.

All the products are original and it will come in the name of Wellste the producing company for accountability purposes.

How Long Does Wellste Take to Provide a Quote?

Aluminium T Slot Extrusions Sydney Aust

Wellste will late less than 24 hours to go through your requirements and provide you with a suitable quote.

Does Wellste Have Stock for T-slot Aluminum Extrusion?

Yes, Wellste have a great stock for T-Slot aluminum extrusions.

The T-Slot aluminum extrusions are of standard size with long bar length profiles.
